How to Fix Cloudflare + Let's Encrypt SSL with HTTP-01 (Tutorial)

After connecting your domain to Cloudflare, you may be like me, wondering:

How do you keep and renew existing Let's Encrypt certificates with Cloudflare?

In this short post, I'll show you how to fix HTTP-01 (webroot) validation when renewing your Let's Encrypt certificates while using Cloudflare.

Note

This tutorial assumes that you have Let's Encrypt configured on your web server. If you don't, see the tutorial below about setting up Let's Encrypt with auto-renew via HTTP-01.

Tutorial: Let's Encrypt HTTP-01 Setup

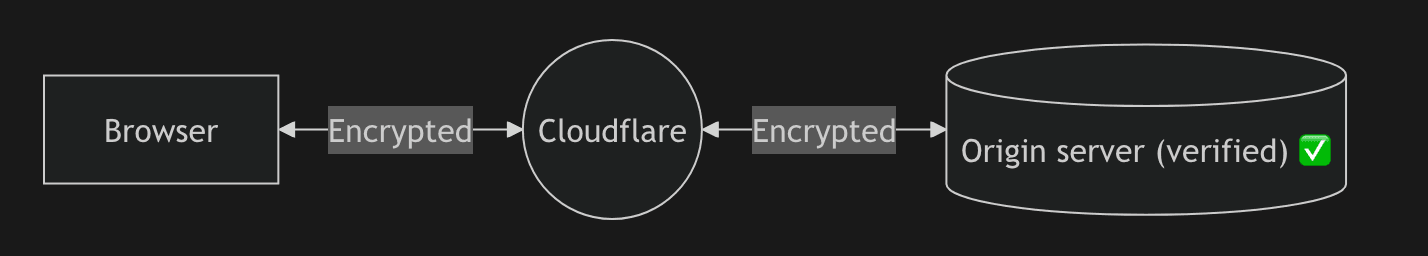

Since Cloudflare sits between your users and your web server, ideally we want Full (Strict) SSL which enforces encryption between your users and Cloudflare and between Cloudflare and your origin server.

Why doesn't Let's Encrypt HTTP-01 work with Cloudflare?

If you have Let's Encrypt certificates, your origin server already should handle SSL properly.

But HTTP-01 ACME renewal challenges don't automatically work with Cloudflare because Cloudflare sits as a reverse proxy in front of your server.

When Let's Encrypt tries to validate the challenge by requesting the challenge file at http://yourdomain.com/.well-known/acme-challenge/, the request goes through Cloudflare first, which caches (and often automatically redirects to HTTPS) responses by default.

This caching and HTTP-to-HTTPS rewriting can prevent Let's Encrypt from seeing the fresh challenge response file your server created.

How to fix Let's Encrypt HTTP-01 with Cloudflare

To fix this issue, we'll have a few options:

1. Cloudflare Universal SSL/TLS + Cloudflare Origin Certificate

2. Cloudflare Universal SSL/TLS + Let's Encrypt

The first method involves removing your Let's Encrypt certs and using Cloudflare origin CA certificates to encrypt traffic between Cloudflare and your origin web server.

This can often work well, but also has some drawbacks, mainly:

• Longer maximum validity period (up to 15 years) can be considered less secure than Let's Encrypt's 90-day rotation
• Origin certificates do not work with direct-to-origin traffic (those who bypass Cloudflare)
• There may be some issues with client-server server side rendering (SSR) communications because all traffic must go through Cloudflare's proxy

Warning

Using Cloudflare's Origin CA certificates can break SSR client-server communications. Origin CA certs are meant only for Cloudflare and origin server communications. One main advantage of using Let's Encrypt for your origin server is to allow Full (Strict) SSL while avoiding SSR or intercommunication concerns between services on your web server. Otherwise, using Cloudflare Origin CA certs you will need ensure all frontend SSR data fetching is done through your Cloudflare proxied domain.

Let's dive into the solution of how to keep and renew Let's Encrypt via HTTP-01 / webroot validation for your origin server.

Enable Full (Strict) SSL

As explained above, we want Full (Strict) SSL to ensure end-to-end encryption by requiring valid, trusted certificates on both ends.

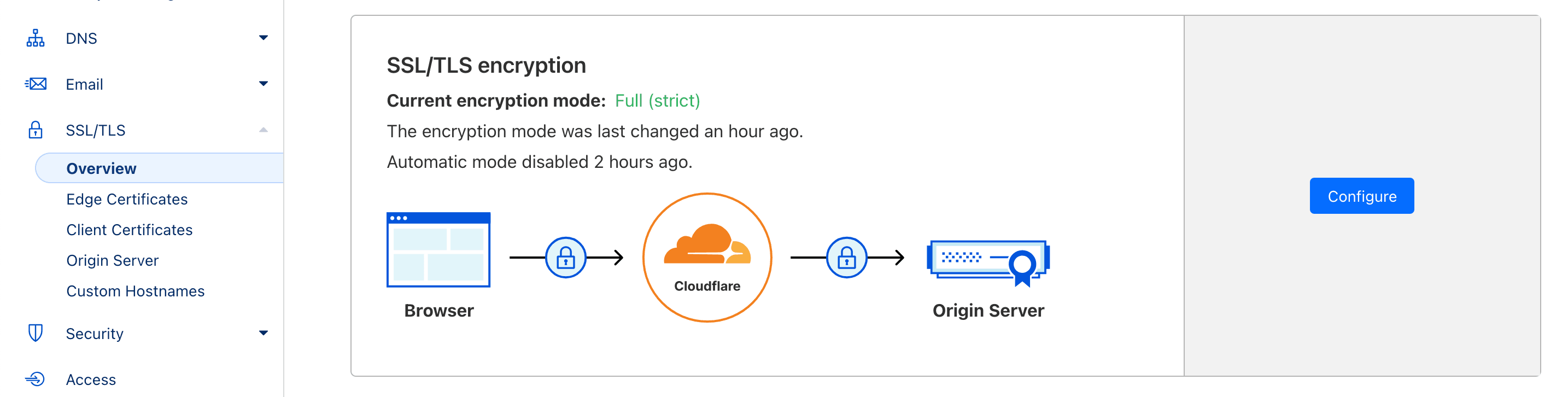

First, let's ensure Full (Strict) SSL is enabled. In your Cloudflare dashboard, navigate to SSL/TLS > Overview:

Then click "Configure":

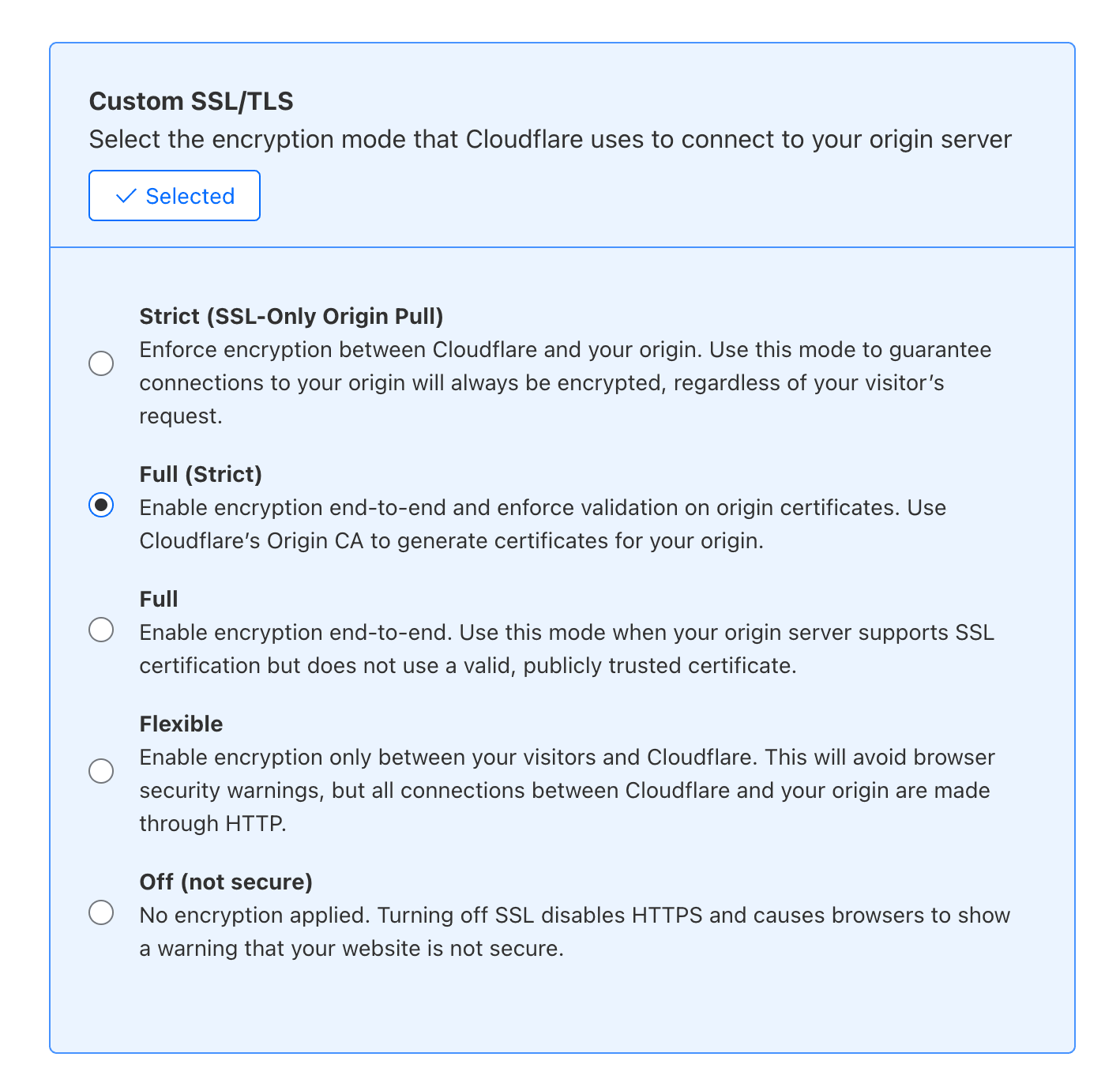

Make sure Full (Strict) is selected.

Create a Cloudflare Configuration Rule

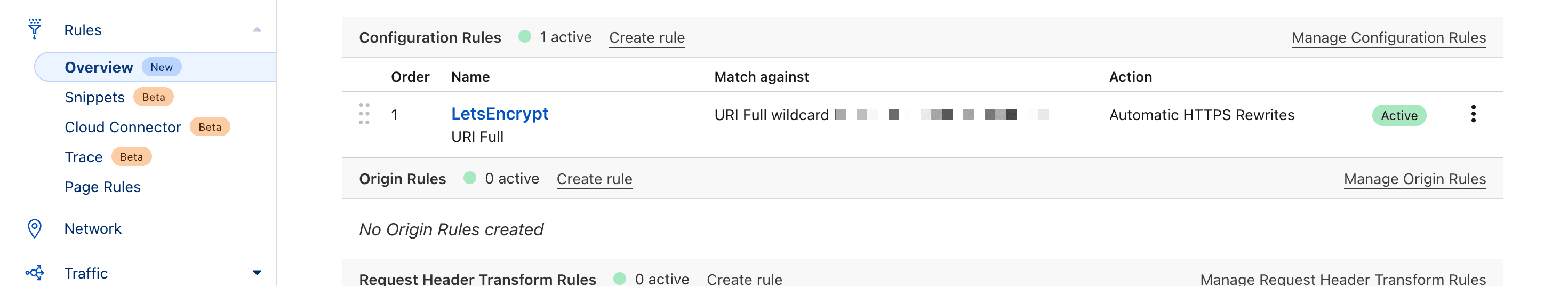

Navigate to Rules > Overview and scroll down to Configuration Rules:

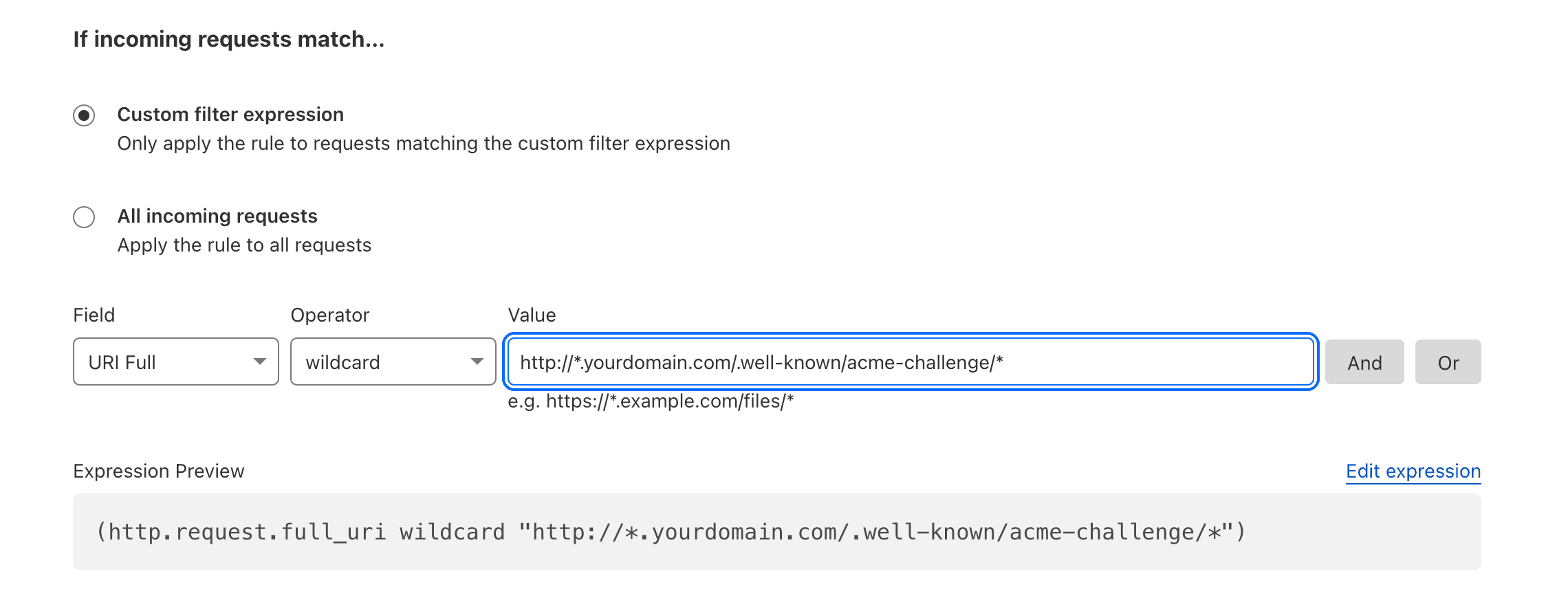

Create a new configuration rule, name it (such as "Let's Encrypt"), and define the filter expression.

The filter expression should look something like:

Copy
http://*.yourdomain.com/.well-known/acme-challenge/*

Note

Make sure to use HTTP, not HTTPS, here since Let's Encrypt HTTP-01 challenge uses (as per its name) HTTP.

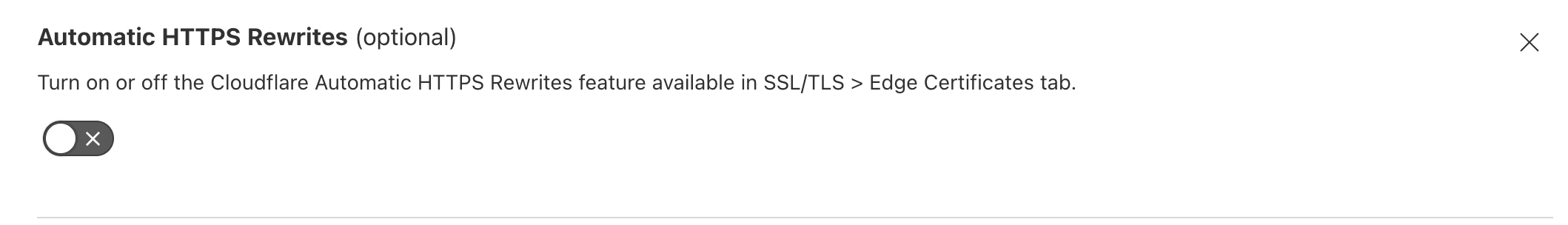

Then, click "+Add" under Automatic HTTPS Rewrites and make sure it is disabled. This will turn off the Cloudflare Automatic HTTP Rewrites for our webroot ACME challenge endpoints.

Click "Save" and you're all set with the Configuration Rules.

Create a Cloudflare Cache Rule (Optional)

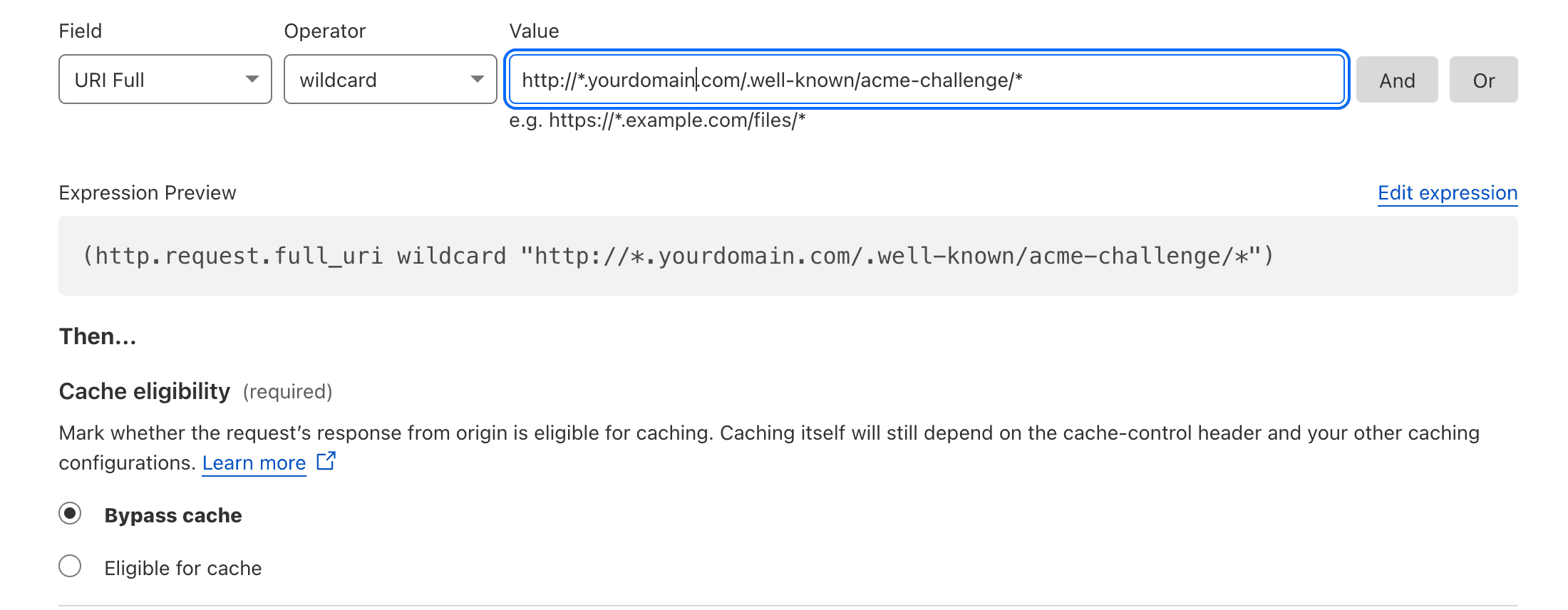

If you're using Cloudflare's Cache, you'll want to create a similar Cache Rule and select "Bypass cache":

Otherwise, Cloudflare may cache old ACME challenges and/or not allow Let's Encrypt to properly verify due to caching.

Test Your Let's Encrypt Renewal

Lastly, to confirm that Let's Encrypt webroot/HTTP-01 validation is working, you can run:

Copy
bashsudo certbot renew --dry-run

You may need to wait a few moments for the rule changes to propagate through Cloudflare's network, but hopefully your HTTP-01 / webroot renewal is working.

With that, your Let's Encrypt certs should be all set and work seamlessly with Cloudflare. Let me know your thoughts, feedback, or questions.
